DJI Camera Zenmuse Thermal H20N(EU)_SP for Matrice 300

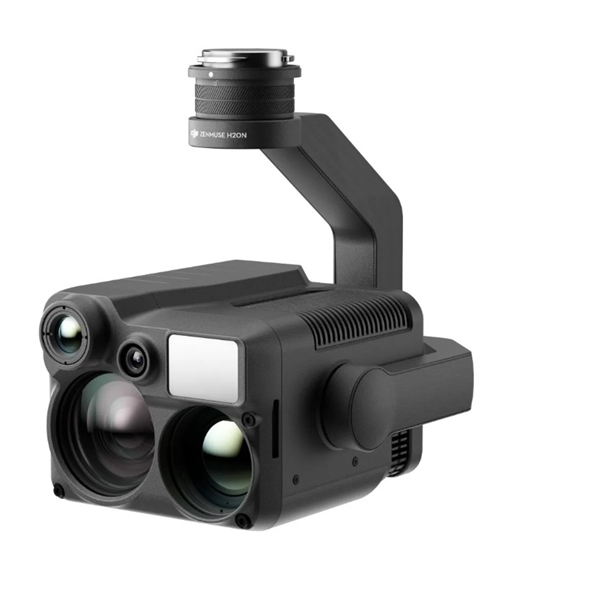

DJI Zenmuse H20N

The Zenmuse H20N's zoom and wide-angle cameras are equipped with starlight sensors, which enhance its performance. When you combine this with twin zoom thermal cameras and a laser rangefinder, you have a highly adaptable hybrid payload that can handle any situation. Combine these with the Matrice 300 and you will be able to see beyond the cover of darkness.

Sensors have been upgraded in a variety of dimensions.

Infrared Zoom
Dual Thermal Cameras
Resolution: 640x512
2x Zoom (Equivalent Focal Length: 53 mm) 8x Zoom (Equivalent Focal Length: 196 mm)

See the Big Picture
Night Vision Wide Camera Starlight Sensor: 2MP
Stronger Low-Light Performance

Pierce Through the Veil
Night Vision Zoom Camera Starlight Sensor: 4MP
20x Optical Zoom, 128? Max Zoom Low-Light Details

Precise Distance Data
Laser Rangefinder
Range: 3 m to 1200 m Accuracy: ± (0.2 m + Dx0.15%)

Dimensions: 178x135x161 mm
Weight: 878±5 g
Protection Rating: IP44
Supported Aircraft: Matrice 300 RTK

Gimbal
Angular Vibration Range: ±0.01°
Mount: Detachable
Zoom Camera
Sensor: 1/1.8" CMOS; Effective Pixels: 4M
Lens: Focal Length: 6.8-119.9 mm (equivalent: approximately 32.7-574.5 mm) | Aperture: f/2.8-f/11 (day); f/1.6-f/11 (night)

Wide Camera
Sensor: 1/2.7" CMOS; Effective Pixels: 2M
Lens: DFOV: 73.6° | Focal Length: 4.5 mm (equivalent: approximately 29 mm) | Aperture: f/2.8

Tele Infrared Thermal Camera
Thermal Imager: Uncooled VOx Microbolometer
Lens: DFOV: 12.5° | Focal Length: 44.5 mm (equivalent: approximately 196 mm) | Aperture: f/1.2

Wide Infrared Thermal Camera
Thermal Imager: Uncooled VOx Microbolometer
Lens: DFOV: 45.5° | Focal Length: 12 mm (equivalent: approximately 53 mm) | Aperture: f/1.0

Laser Range Finder
Wavelength: 905 nm
Measuring Accuracy: ± (0.2 m + target distance x 0.15%)
Measuring Range: 3-1,200 m (0.5 x 12 m vertical)
